Reflector

KM-101

KM-101

ECE,DOT
Certificate
  • Motorcycle Reflector-FORUP M101-2.jpg
  • Motorcycle Reflector-FORUP M101-3.png
  • Motorcycle Reflector-FORUP M101-4.jpg
  • Motorcycle_Reflector-FORUP_M101-5.png
  • Motorcycle_Reflector-FORUP_M101-6.png
  • Motorcycle Reflector-FORUP M101-1.jpg
DETAIL

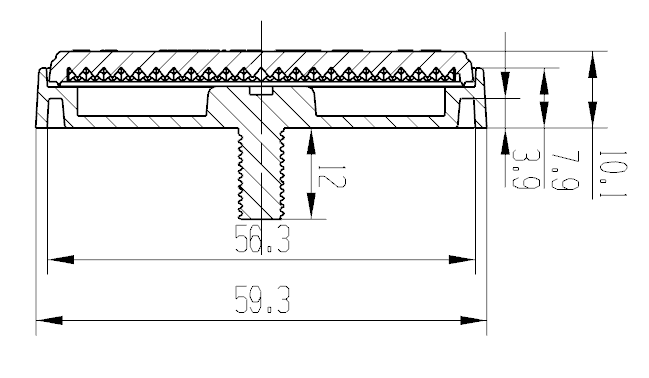

Specifications

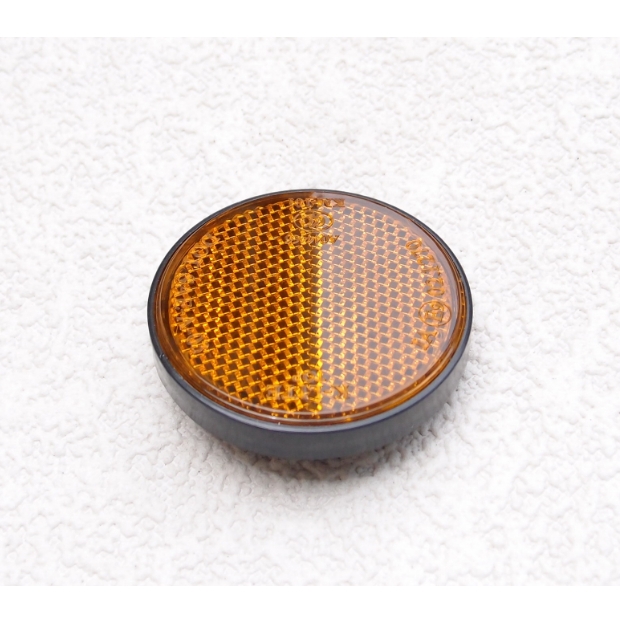

Function Front / Side / Rear Reflector

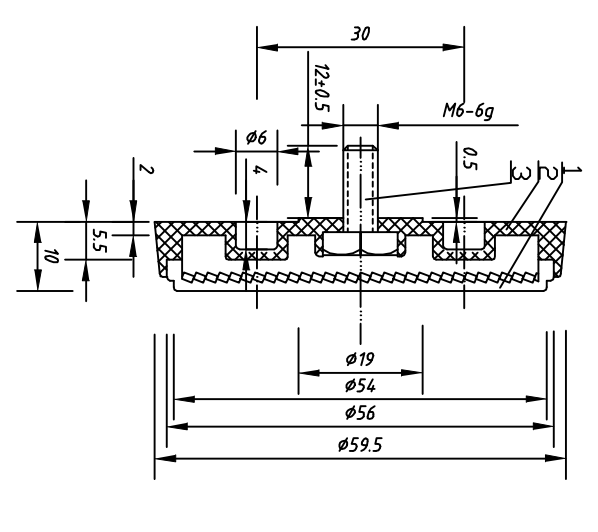

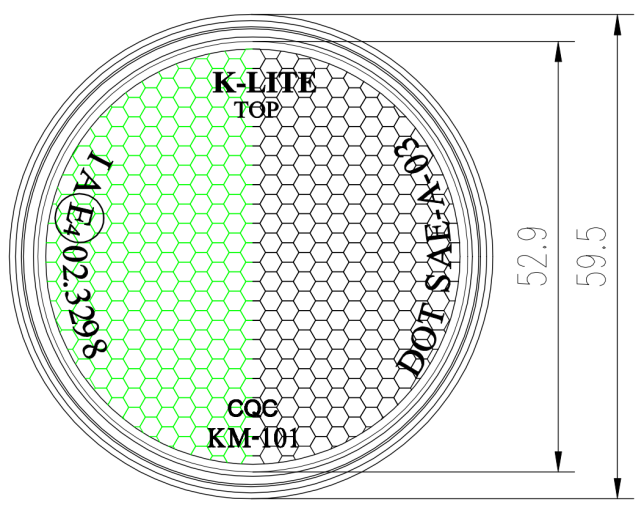

房型LENS Dimension φ 56 mm
房型Base Dimension φ60 mm
房型Thickness 10 mm
房型LENS Material PMMA
Base Material ABS
Certificate ECE,DOT

Choose Options

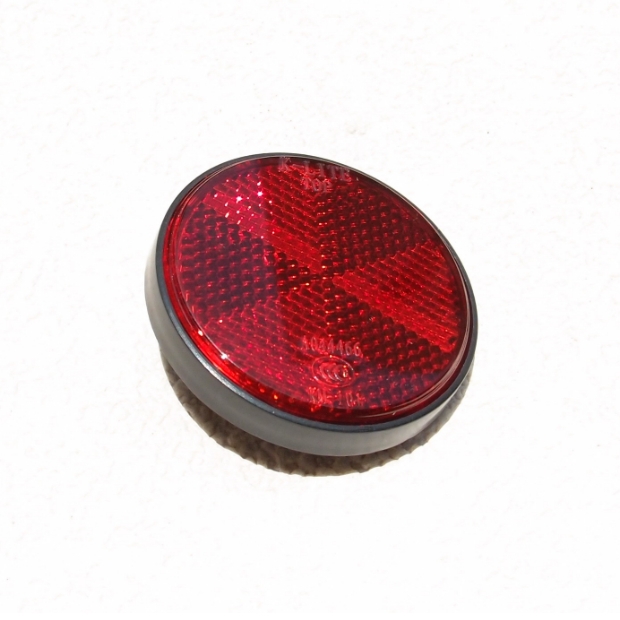

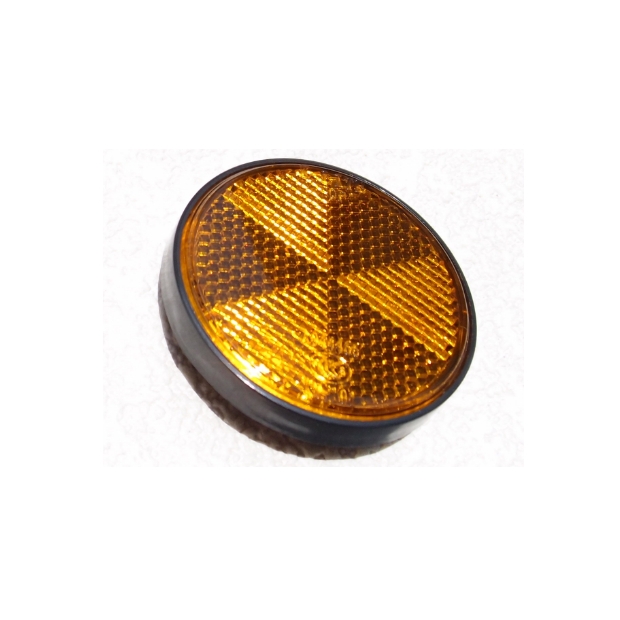

Color of LENS

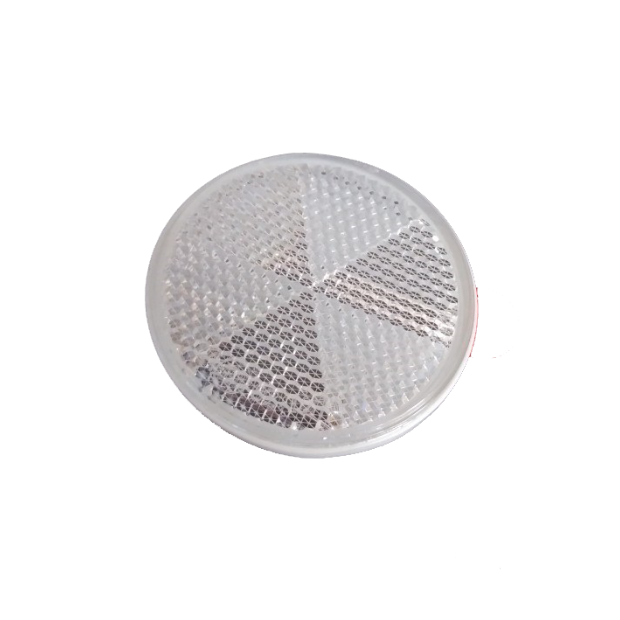

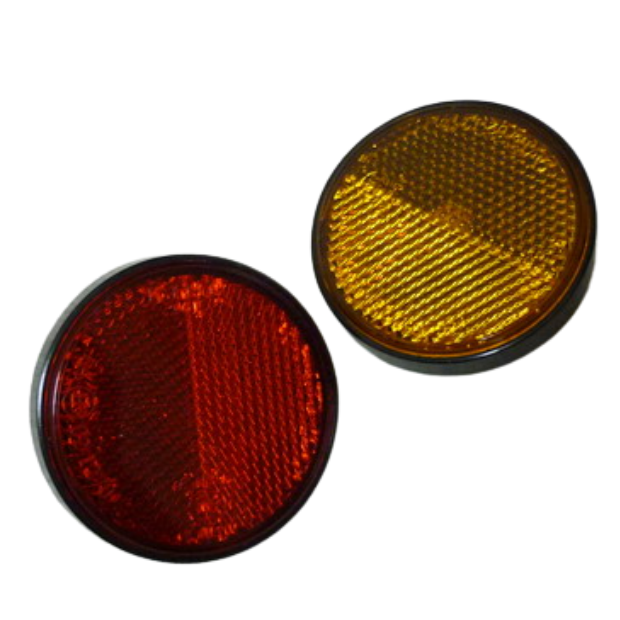

Red、Amber、Clear

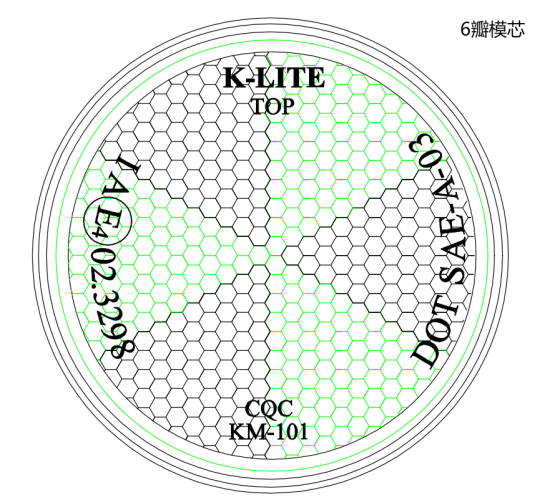

Style of LENS

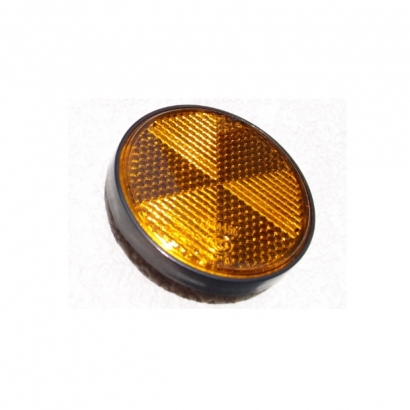

Half division Six division

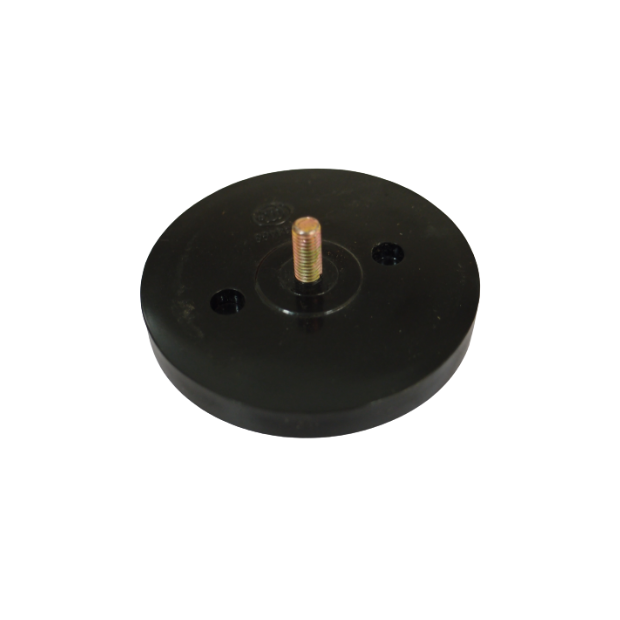

Style of Base
Screw
(M5 / M6 * 12 mm)
Screw with 1.8 mm fix hole * 2
(M5 / M6 * 12 mm)

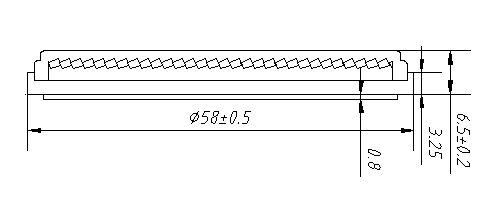

Flat base with tape
(3M tape or DS tape)

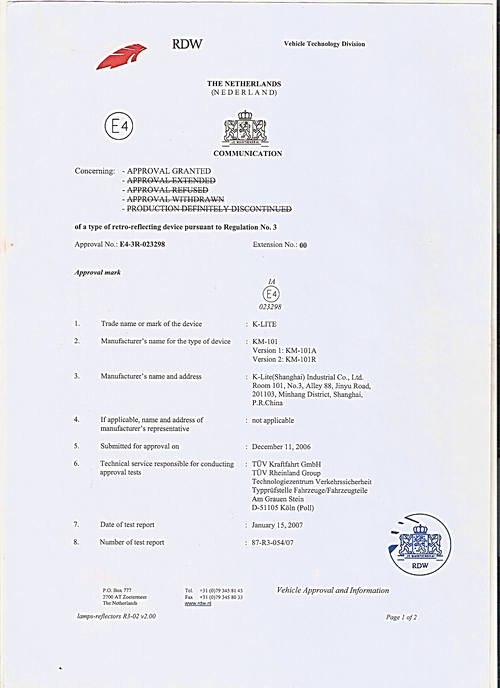

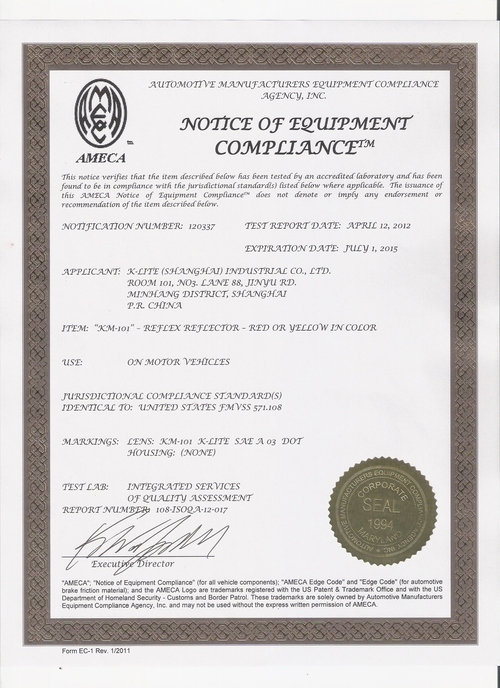

Certificate




Description

The manufacture of motorcycle reflectors was use electroform mold cores (electroform insert) whose surface precision reaches the mirror level to doing plastic injection process ;  When light enter reflector will reflected because the characteristics of light refraction. Achieve the purpose of warning and protection.

The motorcycle reflector is divided into front reflector, rear reflector, side reflector and fork reflector according to product color and appearance.

FORUP reflector made of the highest quality electroform insert and plastic materials with high optical transmittance.The reflection performance achieves the best visualization, ensuring your road safety.
